SEPPES Loading Dock Leveler: Key Equipment for Efficient Warehousing & Logistics
想为您的工厂采购一些工业设备吗？我想我们不仅能为您提供码头平车，还能为您提供系统的仓储和物流解决方案。

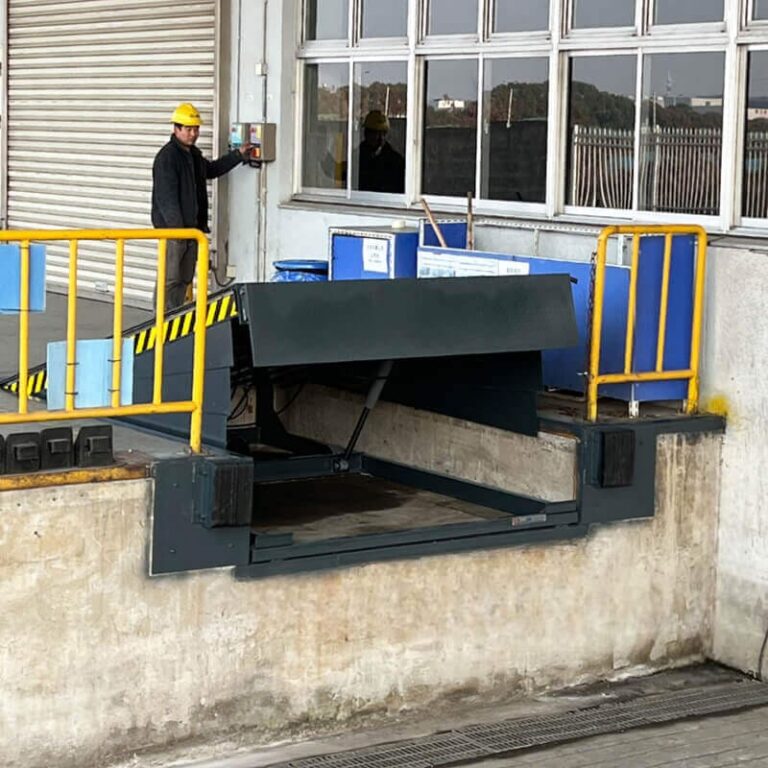

SEPPES dock leveler is designed specifically for warehouses, logistics hubs, and manufacturing plants. It serves as the vital link between your facility and transport vehicles, engineered to bridge height variances with precision and safety. Our hydraulic solutions streamline the transition of goods, ensuring your supply chain remains fluid and efficient.
It adopts hydraulic drive system, with precise lifting adjustment. It can flexibly adapt to truck compartments of different heights, with a load capacity of 6 to 15 tons, meeting the smooth passage requirements of heavy handling equipment such as forklifts and pallet trucks. The dock leveler lip plate automatically connects to the vehicle compartment, forming a stable transition channel, avoiding the jolting and loss of goods during transportation, and increasing the loading and unloading efficiency of a shipment by more than 40%.
Why Choose SEPPES Loading Dock Leveler?
我们是一家重视客户满意度的公司。我们始终致力于生产和交付高质量的码头平整机，以满足您的所有需求。
As a Chinese leading enterprise focusing on high speed industrial doors, SEPPES has provided customized solutions for more than 6,600 enterprises in electronics, medicine, food, automobile, logistics and other industries over the past 15 years.
We provide full-process professional support, from demand assessment, solution design to installation and commissioning, and after-sales maintenance.
Certifications：SEPPES is certified by CE, ISO9001, and SGS, ensuring product quality.
Experienced：SEPPES is an experienced manufacturer, serving over 6,600 clients and exporting to 75+ countries.
Professional Solutions：We have a team of professional technicians who specialize in serving you.
After-Sales Service：Each PVC rapid door comes with a unique ‘ID card,’ making it easy for us to provide after-sales service.
What Can Exterior Loading Dock Leveler Bring to You?
我们出售的不仅仅是一台码头平车，而是一整套服务。它为您的工厂带来便利，提高装卸效率。
占地面积小
装卸平台不工作时，保持水平位置，不占用空间，并具有一定的承载能力。
操作简单
只要按下按钮，装卸平台就会自动升起、
智能控制
智能装卸平台控制系统可实现人机对话操作和维护。
防滑
止滑板由国际 Q235 材料制成，摩擦系数更高，防滑效果更好。
Load bearing
可定制的装卸平台，载重 6-15 吨
安全保护
标准安全电磁阀，防止坠落。您还可以选择一个限制器，防止轿厢翻滚。
Basic Structure of Warehouse Pit Dock Leveler
1.唇板气缸
2.侧帘安全挡板
3.唇板气缸
4.平台支撑钢
5.提升气缸
6.液压泵
7.密封橡胶条
8.黄色和黑色警示条
9.底座
Technical Parameters of Warehouse Pit Dock Leveler
| Table Thickness(mm) | 8mm thickness patterned steel plate of high quality Bengang | |||||||||||||||||||||
| Color ： | Black/Blue /Grey(OPTION) | |||||||||||||||||||||
| Length of Tongue Plate(mm) | 400(500mm is optional) | |||||||||||||||||||||
| Height of Equipment (mm) | 600mm | |||||||||||||||||||||
| Scope of Adjustment (mm) | 300,-300 | |||||||||||||||||||||
| Ambient Temperaturer(Celsius) | 0-30℃–80℃ | |||||||||||||||||||||
| Load Description | Dynamic load 6T/8T/10T/15T (customized) | |||||||||||||||||||||
| Power Group | Single-phase asynchronous motor 110V,50HZ,1.1KW,1400r/min | |||||||||||||||||||||
| ControlBbox | 24V electrovalve ,3/8 threads | |||||||||||||||||||||
| Protection level: | IP54 | |||||||||||||||||||||
| Anti-collision Block | 300mm*200mm*100mm rubber pads(OPTION) | |||||||||||||||||||||
Get a Free Quote for Warehouse Dock Leveler| Custom Solution
Fill out the form below to receive a personalized consultation and free quote tailored to your high-speed folding door needs.
Types of Our Warehouse Dock Leveler
From Hydraulic to Mechanical Types, SEPPES Helps You Choose the Right Dock Leveler for Warehousing, Logistics & Manufacturing Needs

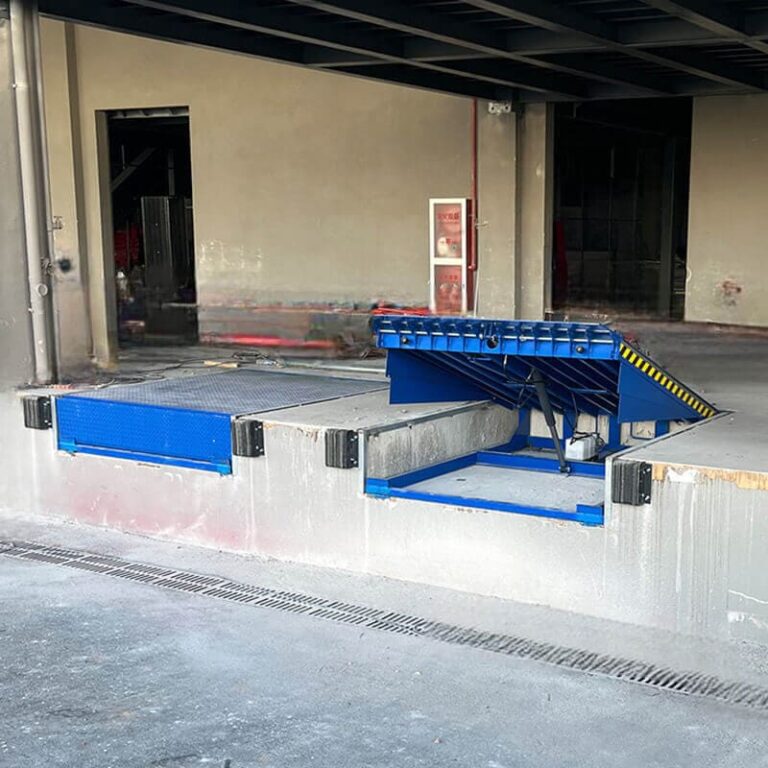

Hydraulic Dock Leveler
Engineered with precision and durability, this hydraulic dock leveler bridges the gap between the loading dock and truck bed, ensuring seamless and safe cargo transfer.
Features:
Smooth Operation: Uses an electro-hydraulic system for seamless lifting and lowering.
High Load Capacity: Supports heavy loads, making it ideal for high-traffic and industrial environments.
Safety Features: Includes velocity fuses, safety solenoid valves, and non-slip surfaces to ensure safe operation.
Low Maintenance: Requires minimal manual effort and maintenance compared to mechanical systems.
Telescopic Lip Dock Leveler
Features:
Adjustable Lip Extension: Equipped with a telescopic lip (adjustable length: 600–1200mm) to bridge gaps and accommodate various truck sizes.
Versatility: Ideal for handling diverse vehicles, including high-cube containers and trucks with varying dock heights.
Precision Positioning: Allows precise placement of the lip onto the truck bed for safe and efficient loading/unloading.
Durable Construction: Built with robust materials to withstand frequent use in demanding environments.
Mechanical Dock Leveler
Features:
Manual Operation: Operates using a spring system and pull chain mechanism, eliminating the need for electrical power.
Cost-Effective: Lower initial cost and operational expenses compared to hydraulic systems.
Durable Design: Simple and sturdy construction ensures reliability and longevity.
Basic Safety Features: Includes toe guards and non-slip surfaces for safe operation.
Basic Information About Our Loading Dock Leveler
只有了解我们产品的基本信息，客户才能轻松确定需要定制的液压码头平整机的尺寸和载荷
可定制的风格
黑色图案面板
RAL9005 黑色
RAL5005 蓝色
蓝色图案面板
Our Projects Around the World
We supply a wide range of industrial stacking rapid doors and warehouse logistics equipment in different fields. We have reached cooperation agreements with over 6,600 enterprises, among which 70 are Fortune 500 companies
Steel Manufacturing in Canada
Logistics Channels in Philippines
Automotive Factories In Peru
Cold Chain Logistics in Australia
Large Industrial Openings in USA
Warehouse In UAE
我们拥有真实权威的证书
为什么很多品牌的产品质量不合格？因为他们给你看的都不是真正的证书。我们的证书是真实的。您可以向我们索取报告。
客户反馈：深受全球客户信赖
We provide technical services to more than 5600 companies. Our loading dock system has been exported to more than 70 countries around the world, such as the United States, Canada, the Philippines, Thailand, Russia, Chile…
Customer from Argentina
Customers from Colombia
Customers from the D.R.
俄罗斯客户
Ready to Elevate Your Logistics & Warehouse Dock Performance？
SEPPES —— where engineering precision meets industry needs, securing your operations every step of the way.
SEPPES Industrial Dock Leveler Solutions Provider
Loading Dock Systems | 15+ Years Engineering Experience
SEPPES Door Industry (Suzhou) Co., Ltd. is a well-known brand high speed door manufacturer. Its core business focuses on high speed doors, covering nearly 70 products, such as industrial rapid doors, dock levelers, high speed freezer doors, etc., catering to the needs of multiple industries.
SEPPES has served over 6,600 modern industrial enterprises worldwide, including more than 70 Fortune 500 companies. Its products are exported to 75+ countries and regions across Europe, the Americas, Asia, and Oceania, supported by stable production and global project delivery capabilities.
Production after order, production cycle of 15-30 days.
Other Types of Loading Dock Equipment You May Like
With its professional manufacturer and brands, SEPPES Industrial Doors & Loading Dock provides technical solutions to more than 6,600 enterprises and factories.
SEPPES 高速
车门新闻与更新
分享最新的工业门和装卸码头项目案例，以及有关高速门和各种工业门的技术信息。
更多信息
Clean Room Door Selection for Hygienic Food Factory Design: Balancing Compliance and Operational Efficiency
In environments adhering to international food safety standards such as HACCP, IFS, or BRC...
更多信息
PVC vs. Aluminum Rolling Shutter Door: The Ultimate Comparison for Industrial Warehouses
When upgrading your facility, the debate often boils down to two heavyweights: PVC rolling...
更多信息

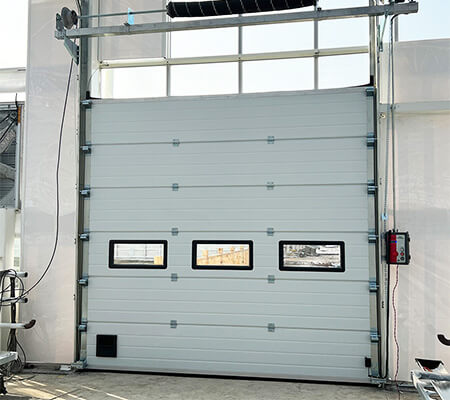

The Strategic Value of Commercial Sectional Overhead Doors in Modern Logistics
Commercial sectional overhead doors are more than just entry points; they are integral com...
也许你还想知道这些事情...
以下问题可能会解答您的一些疑惑。如果您仍有疑问，请随时联系我们，我们将尽快给您答复。
什么是装卸码头平整机，它是如何工作的？
A loading dock leveler is an essential piece of equipment installed at warehouse loading docks to bridge the gap between a dock and a truck trailer, ensuring a smooth and safe transfer of goods. It operates by using hydraulic or mechanical systems to adjust its height, compensating for height differences between the dock and the vehicle. Dock leveler reduces the risk of damage to goods and improving operational efficiency.
在仓库中使用码头平整机有哪些主要好处？
码头平整机具有多种优势：
安全：它们可防止在装卸过程中因表面不平而造成事故。
提高效率：更快的转换速度缩短了加载时间。
多功能性：适用于各种尺寸和重量的车辆。
经久耐用：可承受重负荷和恶劣的工作环境。
码头平整机有哪些不同类型，如何正确选择？
常见的码头平整机类型包括
- 液压码头平整机
- 机械式码头平整机
- 气动码头平整机
在选择码头平车时，要考虑服务的车辆类型、使用频率、负载能力和操作偏好（手动与自动）等因素。
安装码头整平机如何提高运营效率和降低成本？
通过在码头和卡车之间建立无缝连接，码头平整机：
降低劳动强度：减少人工调整的工作量。
最大限度地减少产品损坏：货物在转运过程中保持稳定。
提高周转速度：缩短装载时间，每天可为更多车辆提供服务。
降低维护成本：耐用设计可降低长期维修费用。
码头平整机是否符合国际安全标准？
Yes, our dock levelers from reputable manufacturers, comply with international safety standards like CE and ISO certifications. These standards ensure the equipment meets stringent safety, durability, and performance criteria, providing peace of mind for operators.
如何维护装卸码头平车以确保其长期性能？
检查是否有明显的损坏、碎片或漏油。按照制造商的建议给活动部件涂抹润滑脂。专业服务：安排经认证的技术人员进行年度检查和维护。
